SBS4MRR N Scale 24-Series Tri-Level Control Module for ESU ECoS DCC Command Station

SBS4MRR N Scale 24-Series Tri-Level Control Module for ESU ECoS DCC Command Station

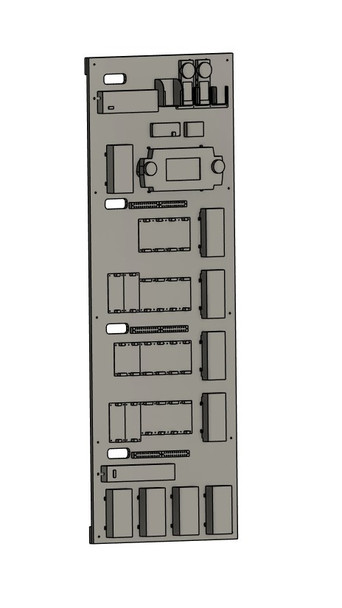

The SBS4MRR N Scale 24-Series Tri-Level Control Module for ESU ECoS DCC Command Station is the heart of the tri-level module design allowing modelers to mount the necessary DCC command station and accessories to layout cleanly.  The Control Module is designed to mount to the exposed face of a Helix Module.  The deign allows easy access to the components to power the layout for easy access, monitoring and troubleshooting.

Components are secured in place using zip-ties or mounting lugs/screws based on the design of the product.

Ports are cut into the face to allow for clean and easy transition of the wiring to the layout.

The control module can be customized for use with any command station and gear upon request including Digitrax, ESU, NCE, TCS, and ZIMO models.

Actual Finished Dimensions (W x D x H - Inches): 26 x 1 x 72-1/8 (module only)

SBS4MRR tri-level modules are engineered to create a three deck, free standing structure designed to minimize the footprint of the layout by maximizing your vertical space.

The decks are optimally spaced to afford easy access to each deck.  The deck to deck spacing is also optimized to allow installation of larger scenery elements like buildings and trees with plenty of clearance to the next deck.

The design also incorporates a covered, structural valance over the top deck for easy lighting and additional storage space as well as plenty of off-the-floor storage space below the bottom deck.

The structure is open for easy access but rigid enough to prevent vibration when working on any level.

All modules are made from high quality, profession grade materials.

• Structural E-members and facia plates are 1/2 inch hardwood-grade sanded plywood
  • E-members are designed to create multiple wireways on each level when fully assembled
• Deck and backdrop plates are 5mm hardwood-grade sanded plywood
• The heavy duty stiffener backplate is 3/4 inch hardwood-grade sanded plywood
  • The stiffener backplate improves the rigidity of the structure in free-standing installations and adds additional weight at the back of the module for improved stability.  The backplate also includes adjustable kickstands to further improve the stability of the module, especially on uneven surfaces like garage floors.

The individual pieces are CNC router cut for precision fit and feature an interlocking tab and slot design that make assembly super fast and super easy.  The final structure is super strong and virtually self-squaring.

The facia plates are designed to create a pocket between the facia, backdrop and deck plate to be able to install a piece of 1" thick foam insulation board (not included) for a clean, finished appearance.  The foam insulation board is a traditional layout construction material used to dampen noise from operation of the trains as well as to simplify the installation of above-grade and below-grade scenery elements.

All modules come complete with a basic hardware kit that includes all of the necessary bolts, washers, nylok nuts, T-nuts, and leveling legs to assemble the module and join one mating module.

Modules can be purchased in various states of finish including:

• Flat Packed
• Assembled
• Assembled and Painted

The fully painted option includes two coats of premium paint on all front and top surfaces in one color of choice (sky blue recommended). Sides are not painted so the modules don't stick together (ask me why this matters!) and the back and bottom generally not visible.

The modules can also be purchased unassembled and flat-packed so they can be assembled on-site.  Assembly is fast and requires only wood glue and brad nails (optional) to complete.  Ok, maybe you will need a glue brush, file, hammer, straight edge, level and sander too for a really pro finish.

Shipping charges must be quoted and charged separately for all orders.

Here is a time-lapsed video of the assembly of a basic straight module to show just how easy it is.

<INSERT VIDEO HERE>

We are happy to create custom module or benchwork designs to fit your space and fulfil your model railroading dreams.

Be sure to visit our sister site SBS4DCC for the best selection of LCC and DCC gear to power your new layout!
